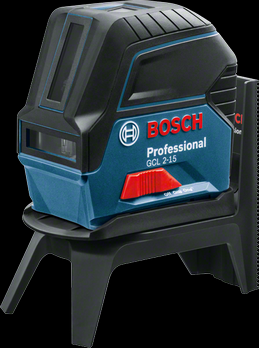

BOSCH GCL2-15+RM1 COMBI LASER (MOUNT,TARGET,CASE)0601066E02

Stock Code: 1700074001M

Technical data

Here you will find the most important technical data for your professional Bosch tool at a glance!

Laser diode	630 – 650 nm, < 1mW
Operating temperature	-10 – 50 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range	15 m
Accuracy	± 0.3 mm/m
Working range of laser points, max.	10 m (top), 10 m (bottom)
Self-levelling range	± 4°
Levelling time	4 s
Dust and splash protection	IP 54
Power supply	3 x 1.5 V LR6 (AA)
Operating time (max.)	6 h in cross line and point mode, 8 h in cross line mode, 12 h in line and point mode, 16 h in line mode, 22 h in point mode
Tripod thread	1/4", 5/8"
Weight, approx.	0,49 kg
Length	130 mm
Width	83 mm
Height	162 mm
Colour of laser line	red
Projection	2 lines / 2 points
Plumb point accuracy	± 0.7 mm/m

Horizontal and vertical laser lines and two centred plumb points with optimal visibility
Flexible to use with rotating RM 1 Professional multifunctional mount for aligning the laser lines and for versatile mounting of the tool
Easy handling due to single-handed operation and intuitive user interface
Horizontal and vertical self-levelling up to ±4°
