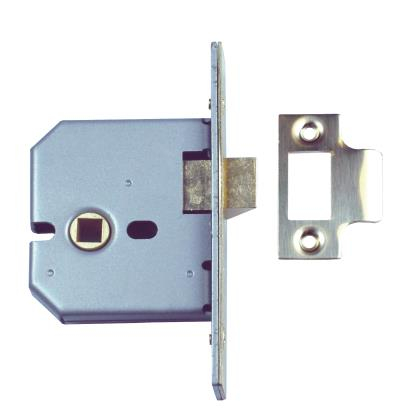

Union 2677 Mortice Latch

Union 2677 Mortice Latch

Size
Finish
Please select from the options above.
Quantity:
-
+

Application

  • For timber doors hinged on the left or right and requiring lever handle operation

Specification

  • Latch bolt withdrawn by sprung lever handle from either side
  • Reversible latch bolt
  • Pierced to accept bolt through furniture
  • Available with square forend and striking plate
  • Case Size: 65mm (2") or 77.5mm (3")
  • Backset: 44mm or 57mm
  • Case: Steel, silver powder coat
  • Forend: Stainless steel or brass
  • Striking Plate: Finished to match forend
  • Deadbolt: n/a
  • Latch Bolt: Brass, easily reversible
  • Follower: 8mm square
  • Rebate Kit: 2992 (13mm, 19mm or 25mm)
  • Keying Groups: None
  • Available in SC and PL finishes

Finish

  • SC - Satin Chrome finish
  • PL - Polished Brass finish
