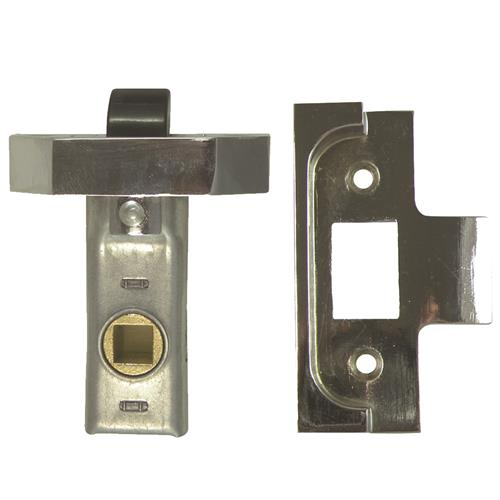

Union 2650 Rebated Tubular Latch

Union 2650 Rebated Tubular Latch

Size
Please select from the options above.
Quantity:
-
+

Application

  • For timber doors hinged on the left or right and requiring lever handle operation
  • Not suitable for use with unsprung lever handles

Specification

  • Latch bolt withdrawn by sprung lever handle from either side
  • Two way action
  • 2650 - rebated mortice latch (suitable for 13mm rebate)
  • Available with square forend and striking plate
  • Case Size: 64.5mm (2.5"), 80mm (3") or 91.5mm (3.5"),
  • Backset: 44.5mm, 57mm or 82.5mm
  • Case: Steel, galvanised
  • Forend: Stainless steel or brass
  • Striking Plate: Finished to match forend
  • Deadbolt: n/a
  • Latch Bolt: Black, plastic construction
  • Follower: 8mm square
  • Rebate Kit: Fixed 13mm rebate on 2650

Click on any of the following links to download the file.
