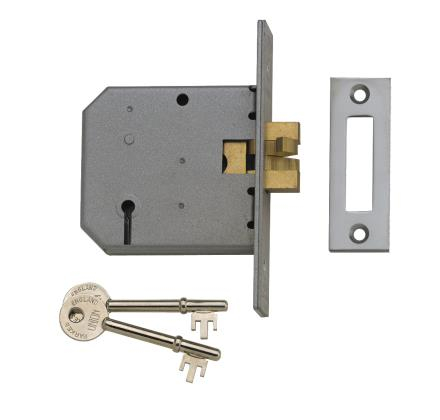

Union 2477 75mm Sliding Door Lock

Union 2477 75mm Sliding Door Lock

Finish
Please select from the options above.
Quantity:
-
+

For timber doors sliding from the left or right and requiring key operation only.

Suitable for use on doors up to 54mm thick.

Expanding claw deadbolt.

Claw deadbolt locked or unlocked by key from either side.

Available with square forend and striking plate.

Details:

+ Case Size: 77.5mm (3")
+ Backset: 57mm
+ Case: Steel, silver powder coat
+ Forend: Stainless steel or brass
+ Striking Plate: Finished to match forend
+ Deadbolt: Brass, expanding claw
+ Latch Bolt: n/a
+ Follower: n/a
+ Rebate Kit: 2969 (13mm, 19mm or 25mm)

Finishes - Satin Chrome and Polished Brass.
