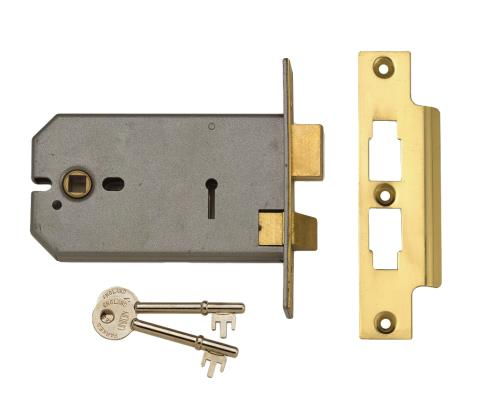

Union 2077 Horizontal Mortice Lock

Union 2077 Horizontal Mortice Lock

Finish
Size
Please select from the options above.
Quantity:
-
+

Application:

+ For timber doors hinged on the left or right.
+ Keys suitable for use on doors up to 54mm thick.

Specification:

+ Deadbolt locked or unlocked by key from either side.
+ Latch bolt withdrawn by knob or sprung lever handle from either side.
+ Two-way action, suitable for knobs or sprung lever handles.
+ Pierced to accept bolt through furniture.
+ May be keyed alike with 2157, 2177, 2277 & 2477.

NB: Not suitable for master keying.

Further details:

+ Reversible latch bolt.
+ Available with square forend and striking plate.
+ Case Size: 124mm (5") or 149mm (6").
+ Backset: 38mm or 51mm.
+ Case: Steel, silver powder coat.
+ Forend: Stainless steel or brass.
+ Striking Plate: Finished to match forend.
+ Deadbolt: Brass, with hardened steel rollers.
+ Latch Bolt: Brass, easily reversible.
+ Follower: 8mm square, two-way action.
+ Rebate Kit: 2939 (13mm, 19mm or 25mm).
