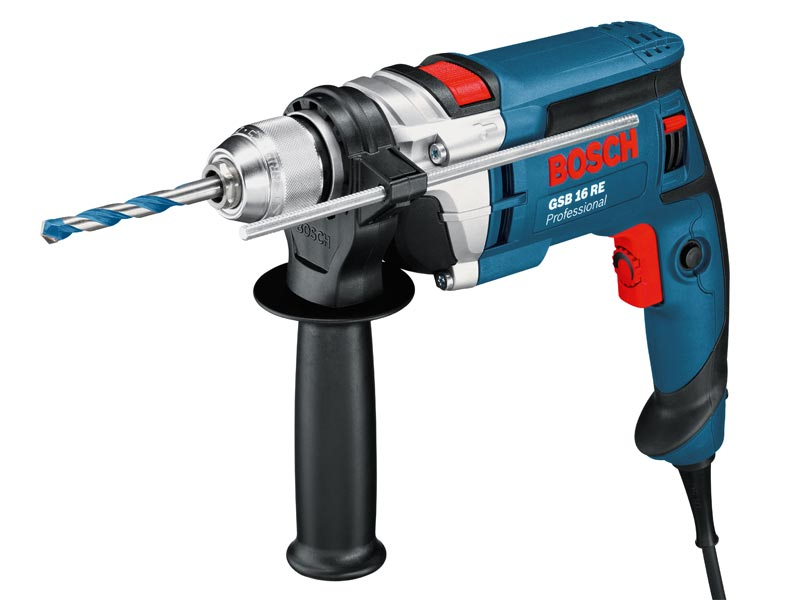

Bosch GSB 16RE Impact Drill

Bosch GSB 16RE Impact Drill

Voltage
Please select from the options above.
Quantity:
-
+

The fastest tool in its class

  • 750 W for the fastest work progress
  • Sturdy metal gear housing for long lifetime
  • Single-sleeve keyless chuck with Auto-Lock for fast tool changes with one hand
  • New safety handle with innovative fixing for a secure hold on the machine
  • Speed preselection with setting wheel for working in various materials
  • Compact design for perfect handling
  • Rotating brush plate for constant power in reverse and forward rotation
  • Ball grommet for high movement radius and for preventing cable breaks
  • Softgrip for a secure hold
  • Spindle collar diameter of 43 mm (European standard) – can be used in drill stands

Functions

  • Continuously variable speed control
  • Right-hand/left-hand rotation
  • Electronic
  • Auto-Lock
  • Softgrip
Rated power input 750 W
No-load speed 0 – 2.800 rpm
Power output 380 W
Weight 2,2 kg
Torque (soft screwdriving applications) 18,0 Nm
Rated torque 2,3 Nm
Drill spindle connecting thread 1/2" – 20 UNF
Chuck capacity 1,5 – 13 mm
Length 285,0 mm
Height 214,0 mm
Impact rate at no-load speed 0 – 47.600 bpm
drilling range
Drilling diameter in concrete 16 mm
Drilling diameter in wood 30 mm
Drilling diameter in steel 13 mm
Drilling diameter in masonry 18 mm

Noise/vibration information

Measured values determined according to EN 60745. Total vibration values (vector sum of three directions)

Thread-cutting
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Screwdriving
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Impact drilling in concrete
Vibration emission value ah 15.0 m/s²
Uncertainty K 2.4 m/s²
Drilling in metal
Vibration emission value ah 5.5 m/s²
Uncertainty K 1.5 m/s²
