Vent-a-matic Rotary Ventilators

Vent-a-matic Rotary Ventilators

Size
Window Type
Please select from the options above.
Quantity:
-
+

Ventamatic Cord Operated Fan.

The Simon ventamatic cord operated fans are durable and are an effective range of in-glass ventilators that can solve most ventilation requirements.

Suitable for double and single glazing the Vent-A-Matic is still the market leader in its field.

A complete range of quality glass mounted ventilators.

Patented diffused rotor system prevents severe draughts.

Models suitable for single or double glazing.

Controllable - with open/close shutters.

External stormguards available on most models.

Aperture reducing ring available (AP AD).

Controllable with shutters.

Models:
102 For Single Glazed Windows
106 For Single Glazed Windows
SXL For Single Glazed Windows
DGS106 For Double Glazed Units

Simon Vent-A-Matic controllable ventilators are available in various model sizes.

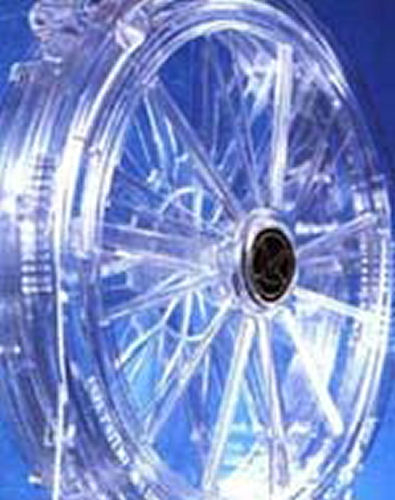

Each model is equipped with a diffusing rotor which helps to prevent severe draught and improve fresh air distribution within the room.

The rotor also continues to operate whilst under its own inertia, even when air pressure on each side has been equalised.

Simon Vent-A-Matic controllable ventilators provide the ideal solution to the control of condensation in most room sizes.

They can be fitted to 4mm or 6mm single glazing and up to 32mm double glazing without the need to reglaze and are particularly useful where no opening is available, or where leaving an open window has safety and security implications.

Model 102 is ideal for toilets, boats caravans and sheds - 5,093mm2.

Model 106 is ideal for kitchens, bathrooms, bedrooms and average size rooms - 9,000mm2.

Model SXL is ideal for larger rooms, offices, hospitals, and other commercial usage - 16,741mm2.

Hole Diameter:
Model 102 to suit 121mm dia hole.
Model 106 to suit 162mm dia hole.
Model SXL to suit 219mm dia hole.
Model DGS106 to suit 162mm dia hole.

DGS106 - hermetically sealed units, 12-32mm.

Aperture Adapters to adapt 180mm up to 200mm diameter holes are available as an extra.

Model 102, Model 106, Model SXL and Model DGS/106 comes complete with Stormguard, Aperture Adapter.
