flyaside panther ball bearing door gear

Descriptions

Please note:

Due to excessive carriage charges on these products they can only be delivered on our own vehicles within a 50-mile radius of Carlisle.Alternatively they can be collected from any of our stores in Carlisle, Kendal or Morecambe.

If required to be sent on carrier please contact us for extra cost of carriage.
For more information give us a call on 01228 511 511, email us at sales@cglass.co.uk or pop in and see us.

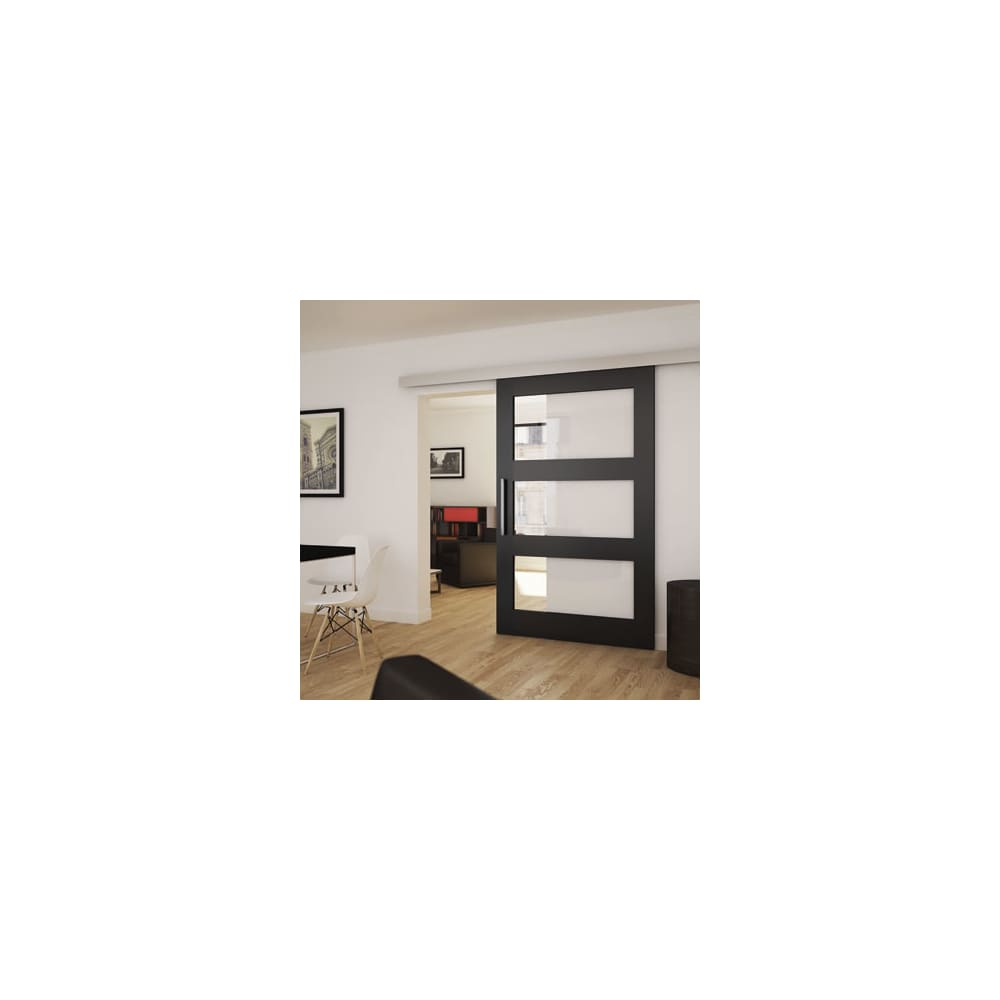

Coburn Flyaside Panther Sliding Door Gear. Internal Straight Sliding sliding door gear for houses, offices, schools etc. It operates on the caged ball runner principle for sturdy reliable operation. A linear motion provided by a sliding inner bar supported by a double row of chrome steel balls running between a vee section outer member.

Suits Door Thickness 30 to 44mm.

Available in 4 different sizes for door widths.

Set comes with the following; 1 ball bearing top assembly with floor plates and pendant bolts, door channel, floor guide, 2 door stops, installation details and all screws.

Outer track- Galvanised Steel
Innter Track- Aluminium
Ball Cage- Galvanised steel strip ball retainer. Chrome steel ball
Pendant Brackets- Steel, open slot for lateral adjustments & removal of door.

Supplied as a complete set.

Dimensions

Maximum Leaf weight: 90kg

Maximum Leaf Height: 2.4m

Maximum Leaf Width: 1200mm
